The energy storage system has the feature of high energy density and flexible configuration and can be applied for user-side energy storage, power generation-side energy storage, distributed energy storage,etc.
System main parameters(1.07MWh/500kW)
Battery chemistry: LiFePO4
Cell voltage: 3.2V
Cell capacity: ≥280Ah
Battery unit voltage: 51.2V 16S
Battery unit capacity: ≥100Ah
Battery unit quantity: 15
Battery group: 2S
Battery group voltage: 384Vdc x2
Battery cluster: 5P(768Vx280Ahx5)
Battery system voltage: 768Vdc
Battery continue discharge current: 700Ah(2HR)
Battery max output power: 500KW
Battery work temperature: -10 to +55°C

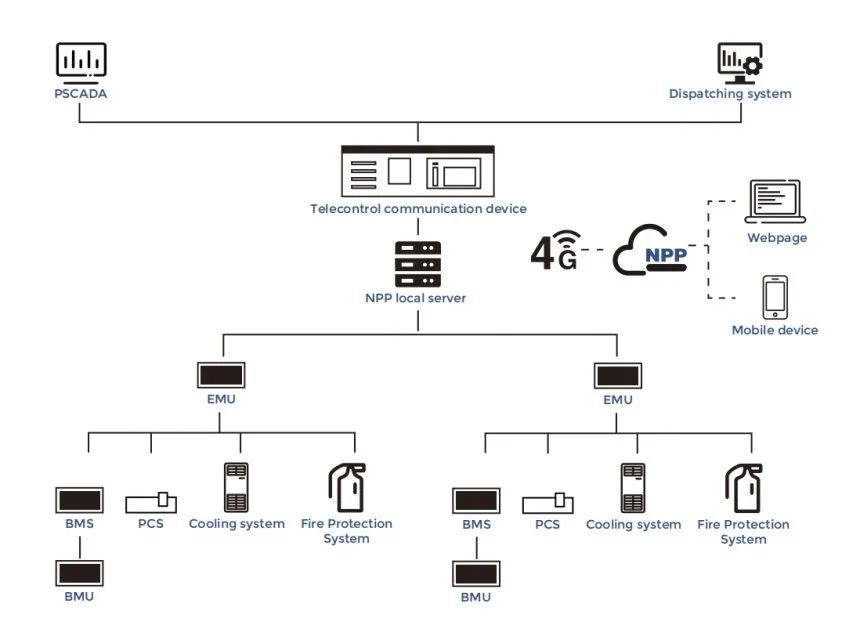

BMS communicate port: RS232, RS485,CAN

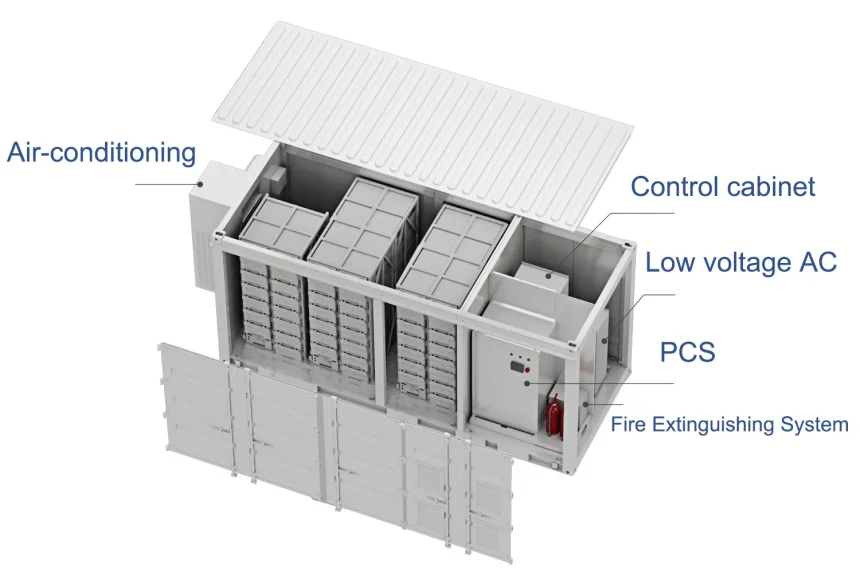

Battery cabinet size: 20ft
NPP high-voltage energy storage lithium iron phosphate battery provide safe and reliable performance and is widely used in commercial and industrial energy storage.
The energy storage system has the feature of high energy density and flexible configuration and can be applied for user-side energy storage, power generation-side energy storage, distributed energy storage, etc.
| Model | 1MWh-20 feet | 2MWh-20 feet | 3MWh-40 feet |
| System Capacity (Mwh) | 1 | 2 | 3 |
| Platform Voltage (V) | 716.8 | 768 | 768 |
| Battery Module Model | 51.2V 280Ah | 51.2V 280Ah | 51.2V 280Ah |
| Charge And Discharge Rate | 0.5C | 0.5C | 0.5C |
| Cooling Method | Air cooling | Air cooling | Air cooling |
| Fire Extinguishing System | Yes | Yes | Yes |
| Dimension (Mm) | 6096*3438*2896 | 6096*3438*2896 | 12191*2438*2896 |
| Weight (Ton) | 18 | 24 | 40 |
| Working Temperture (°C) | -20~60°C | -20~60°C | -20~60°C |
| Communication Protocols | 485、CAN | 485、CAN | 485、CAN |
